> Followability line

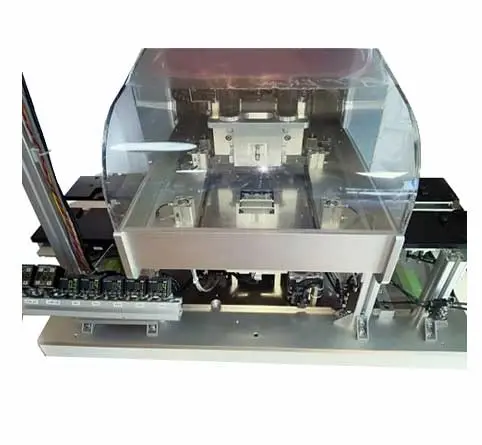

High-speed small screen printing equipment
Next Generation Chip Resistor Printing System
- Screen XYθ adjustment mechanism with JOY stick
- Substrate separation mechanism using hydrodynamics control
- One touch setup change
- Prevent crack chipping, high speed and high accuracy positioning
- High speed and small screen printing automaton.(FL300)
- The low friction pressure control makes it possible to achieve high followability and high speed printing with respect to the decoction of the ceramic substrate. The fastest printing tact time is 2.5 seconds / sheet is possible.
- Half or less compact
- Although it is single, it achieves the same speed as double, the footprint is compacted to less than half in double ratio, and the time it takes to change work size has been shortened from several hours to several minutes.
- Printing automaton layout drawing
- Flexible compatibility
- The maximum screen frame size is also compatible with ☐320 mm, work size is also 50 × 60 / 60 × 70 dual use (optional lateral printing is possible), flexible from a small amount of various kinds to mass production.
